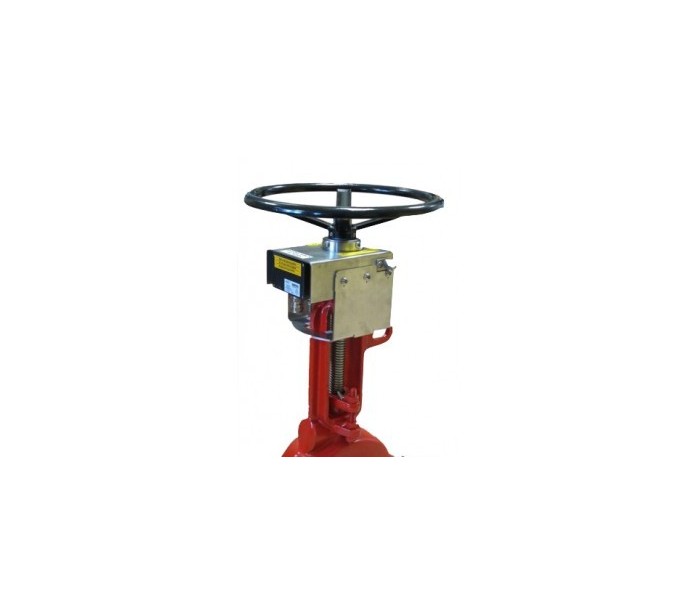

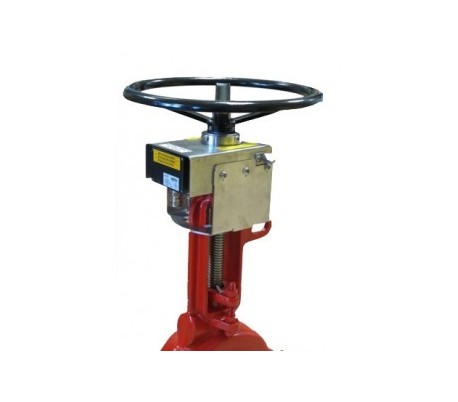

SGL-B-CA
SIGNALING SYSTEM FOR HANDWHEEL OPERATED GATE VALVE FROM 4” WITH TERMINAL BOX
CHARACTERISTICS:
- 1OC (single break) ATEX switch position open ref: OC-SO
- 1OC (single break) ATEX switch position closed ref: OC-SC
- 2OC (single break) ATEX switches position
open and closed ref: OC-SOC
- Terminal box equipped with Metal gable gland M20
- Switch characteristic see page12
- Number of turn of handwheel accepted up to 100
MATERIALS:
Stainless Steel 316
OPTIONS:
Switch types:
- 1NC-1NO (double break) switch position open ref: 1O1C-SO
- 1NC-1NO (double break) switch position closed ref: 1O1C-SC
- 2x 1NO-1NC (double break) switches valve positions open
and closed ref: 1O1C-SOC
