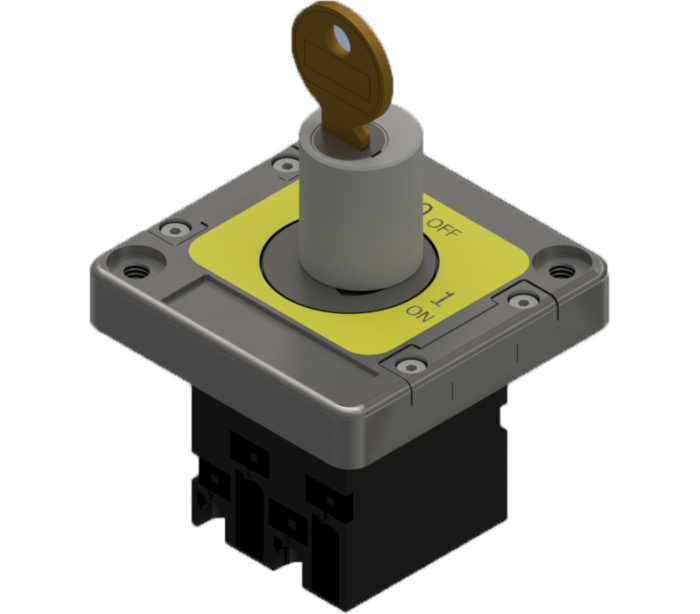

CHARACTERISTICS:

- Key operated power isolation or circuit control

  switch lock Standard sequence: key release when

  power «off»

- Panel mounting (BOB), at option choice

  wall-mounted (FOB)

- 1 to 5 locks (keys). Multiple lock ref: 2E, 3E, 4E, 5E

MATERIEL:

Stainless Steel 316

ELECTRICAL FEATURES:

Contacts: 2NO+2NC  AC21  16A, AC23 4kW/230V, 7.5/400V,

AC3 3kW/ 230V,4 kW/ 400V

OPTIONS:

- 1 switch per lock (between number of locks and

  switch contacts ordering reference)

- Contacts:  3NO+1NC key free ref: 3O1F

- Contacts:  4NO key free ref:  4O

- Lock dustcover ref: CE

- In enclosure-IP55 polycarbonat ref: IP55 (Dust cover included)

- Padlocking device , 2x8,2 mm holes ref: HC2

- Key ejection réf : EJC

OPERATING PRINCIPLE:

Key 1 on position 1

1 switches on position 2NO 2NC.
